Three Roll Troughing Carry Idler Roller Apply to Belt Conveyor System
Feature of Three Roll Troughing Carry Idler Roller Apply to Belt Conveyor System
1. Strong adaptability to the line. The conveying line can be horizontal or inclined, or it can be bent horizontally or vertically, so it is less restricted by terrain conditions.
2. Easy loading and unloading. The belt conveyor can be loaded and unloaded at any point according to the needs of the process.
3. High reliability. Due to the simple structure and the light weight of the moving parts, as long as the conveyor belt is not torn, the service life can be as long as ten years, and the metal structural parts will not be damaged for decades if they are rust-proof.
Working principle of Three Roll Troughing Carry Idler Roller Apply to Belt Conveyor System
Belt conveyor is composed by two endpoint pulleys and a closed conveyor belt. The pulley that drives conveyor belt rotating is called drive pulley or transmission drum; the other one–only used to change conveyor belt movement direction–is called bend pulley. Drive pulley is driven by the motor through reducer, and conveyor belt dragging relies on the friction drag between the drive pulley and the conveyor belt. The drive pulleys are generally installed at the discharge end in order to increase traction and be easy to drag. Material is fed on the feed-side and landed on the rotating conveyor belt, then rely on the conveyor belt friction to be delivered to discharge end.
Application of Three Roll Troughing Carry Idler Roller Apply to Belt Conveyor System
Troughed Belt conveyors are the logistics and transportation machinery widely needed in many industrial sectors. Due to the variety and wide specifications of belt conveyors, it can be applied to the logistics and transportation requirements of chemical, light industry, food, food, building materials, post and telecommunications, and many other departments; it can also meet various operations such as docks, storage yards, warehouses, and workshops. Line transportation requirements. Belt conveyors use belts, steel belts, steel fiber belts, plastic belts, and chemical fiber belts as conveyors to transport materials and haul workpieces. Its characteristic is that the conveyor belt that carries the material is also a traction member that transmits power, which is significantly different from other conveyor machinery. It is the most widely used type in continuous conveyors, and it is mainly belt.
Selection Conditions of Three Roll Troughing Carry Idler Roller Apply to Belt Conveyor System
-
Material to be processed: _____
-
Handling capacity:_____
-
Bulk Density: _____t/m3
-
Material temperature: _____℃
-
Water content:____%
-
Material is corrosive or not: ____
-
Material is sticky or not: ____
-
Working environment temperature: ______ ℃
-
Working voltage:____V_____hz_____phase
Technical Parameters of Three Roll Troughing Carry Idler Roller Apply to Belt Conveyor System
| Belt Width | Section Form | Speed | Max Capacity |
| 800mm | Though | 1.0m/s | 278t/h |
| 1.25m/s | 348t/h |
| 1.6m/s | 445t/h |
| 2.0m/s | 546t/h |
| Flat | 0.8m/s | 118t/h |
| 1.0m/s | 147t/h |
| 1.25m/s | 184t/h |
| 1.6m/s | 236t/h |
| 2.0m/s | 289t/h |
Product Tags:
|
|

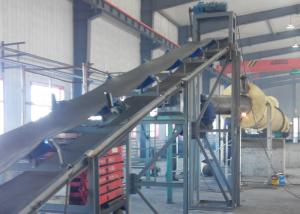

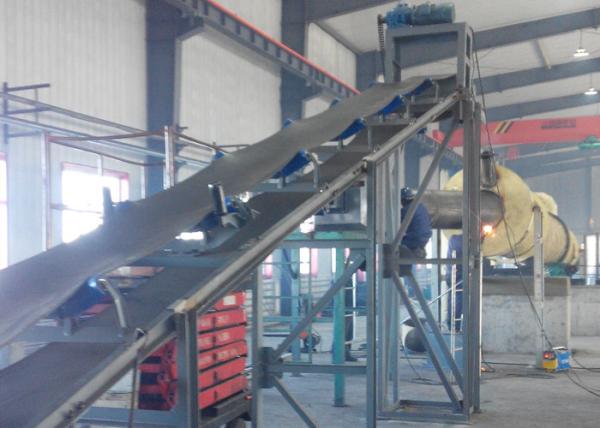

Three Roll Troughing Carry Idler Roller Industrial Conveyor Belts Images
|
