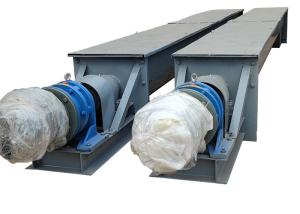

Easy Maintenance Smooth Running 20 Ton Capacity LS Screw Auger Conveyor
I. Overview.
Screw conveyor is a kind of machinery that uses a motor to drive spiral rotation and push materials to achieve the purpose of conveying.
II.Characteristics are below
1. Large carrying capacity, safety and reliability.
2. Strong adaptability, convenient installation and maintenance, and long life.
3. The whole machine is small in size and high in speed, ensuring fast and uniform delivery.
4. The discharge end is equipped with a cleaning device, the whole machine has low noise, strong adaptability, and flexible layout of the inlet and outlet positions.
5. Good airtightness, the shell is made of seamless steel pipes, and the ends are connected by flanges to form a whole, with good rigidity.
III. Working principle and Applictaion
The LS type screw conveyor uses a rotating screw to push the conveyed material along a fixed casing to carry out the conveying work. The head and tail bearings are moved outside the casing. The hanging bearing adopts a sliding bearing and is equipped with a dust-proof sealing device. Generally, powder metallurgy is used, felt bearing bushes are used for conveying cement, and suspension shafts and screw shafts are connected by sliding blocks.
LS type screw conveyor is widely used in various industries, such as building materials, chemical industry, electric power, metallurgy, coal, food and other industries. It is suitable for horizontal or inclined conveying powder, granular and small block materials, such as coal, ash, slag, cement , Food, etc., the temperature of the material is less than 200℃. The LS screw conveyor is not suitable for conveying materials that are perishable, viscous, and easily agglomerated.
IV. Technical parameter
| Model | Diameter mm | Pitch mm | Speed r/min | Standard Capacity(m3/h) | Speed r/min | Standard Capacity(m3/h) | Speed r/min | Standard Capacity(m3/h) |
| φ0.45 | φ0.33 | φ0.15 | φ0.45 | φ0.33 | φ0.15 | φ0.45 | φ0.33 | φ0.15 |
| LS20 | 200 | 200 | 100 | 16.9 | 12.4 | 5.6 | 80 | 13.5 | 9.9 | 4.5 | 63 | 10.7 | 7.8 | 3.6 |
| LS315 | 315 | 315 | 80 | 52.9 | 38.8 | 17.6 | 63 | 41.6 | 30.5 | 13.9 | 50 | 33.1 | 24.2 | 11 |
| LS400 | 400 | 355 | 71 | 85.3 | 62.5 | 28.4 | 56 | 67.3 | 49.3 | 22.4 | 45 | 54.1 | 39.6 | 18 |
| LS500 | 500 | 400 | 63 | 133.2 | 97.7 | 44.4 | 50 | 105.8 | 77.6 | 35.3 | 40 | 84.6 | 62.0 | 28.2 |
Ⅴ.Selection Conditions of Trough Auger Conveyor
| Material to be processed: _____ | Working environment is indoor or outdoor:________ |
| Handling capacity: ________per hour | Working environment temperature: _______ ℃ |
| Bulk Density: _____t/m3 | Installation form is horizontal or inclined : ________ |
| Conveying distance: ________ | If it is inclined,what is the inclined degree_____° |
| Material size:____mm | Water content:____% |
| Material temperature: _______ ℃ | Working power supply: _____V ______HZ ______PH |
VI. FAQ:
1. What’s the information should I provide when inquiry?
More details or drawings, more better.
A: which materials that conveying
B: handing caoacity
C: lift height
D: conveying length ?
Or other specials you give us will be more appreciated.
2. How many operating methods for my selection?
Standard operating methods:
A: pendent controller with push buttons.
B: remote control with push buttons
3. How long is your warranty?
Our warranty is 15 months after received the goods.
