Long Distance And Large Capacity 500 -1400 TPH Inclined Belt Conveyor Convenient Maintenance

Name: Long Distance And Large Capacity 500 1400 TPH Inclined Belt Conveyor Convenient Maintenance
Brand: JINRUI
Price: 1 USD

Quality Long Distance And Large Capacity 500 -1400 TPH Inclined Belt Conveyor Convenient Maintenance wholesale

Brand Name : JINRUI

Model Number : TD75-650

Certification : ISO

Place of Origin : Henan

MOQ : 1 piece

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 50 piece per Month

Delivery Time : 10-12 work days

Packaging Details : accroding to the machine size packed into different size woodcase

Material feature : Different as different requests

Material : Carbon steel,Stainless Steel

Usage : bulk material or pieces

After-sales service provided : Engineers available to service machinery overseas

Structure : Inclining Conveyor

Voltage : 220/380V

Contact Now

Convenient Maintenance Long Distance TD75 Inclined Belt Conveyor

Working principle of TD75 Inclined Belt Conveyor

TD75 belt conveyor is a kind of friction driven machinery which can transport materials in a continuous way. It can be used to form a material conveying process from the initial feeding point to the final discharging point on a certain conveying line. It can not only transport the broken materials, but also transport the finished products.

Feature of TD75 Inclined Belt Conveyor

TD75 belt conveyor is stable in conveying, and there is no relative movement between the material and the conveyor belt, which can avoid the damage to the conveying material. Low noise, suitable for quiet working environment. The utility model has the advantages of simple structure, convenient maintenance, low energy consumption and low use cost.

Application of TD75 Inclined Belt Conveyor

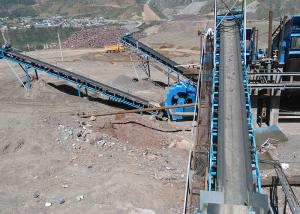

Inclined Belt conveyors are the logistics and transportation machinery widely needed in many industrial sectors. Due to the variety and wide specifications of belt conveyors, inclined conveyor can be applied to the logistics and transportation requirements of chemical, light industry, food, food, building materials, post and telecommunications, and many other departments; inclined belt conveyor can also meet various operations such as docks, storage yards, warehouses, and workshops. Line transportation requirements. Belt conveyors use belts, steel belts, steel fiber belts, plastic belts, and chemical fiber belts as conveyors to transport materials and haul workpieces. Its characteristic is that the conveyor belt that carries the material is also a traction member that transmits power, which is significantly different from other conveyor machinery. It is the most widely used type in continuous conveyors, and it is mainly belt.

Technical Parameters of TD75 Inclined Belt Conveyor

Carrying idler form	Belt speed(m/s)	Belt width(mm)
		500	650	800	1000	1200	1400
		Capacity(t/h)
Slot roller	0.8	78	131

	1	97	164	278	435	655	891
	1.25	122	206	348	544	819	1115
	1.6	156	264	445	696	1048	1427
	2	191	323	546	853	1284	1748
	2.5	232	391	661	1033	1556	2118
	3.15			824	1233	1858	2528

	4					2202	2996

Roller	0.8	41	67	118

	1	52	88	147	230	345	469
	1.25	66	110	184	288	432	588
	1.6	84	142	236	368	553	753
	2	103	174	289	451	677	922
	2.5	125	211	350	546	821	1117

Selection Conditions of TD75 Inclined Belt Conveyor

Material to be processed: _____
Handling capacity:_____
Bulk Density: _____t/m3
Material temperature: _____℃
Water content:____%
Material is corrosive or not: ____
Material is sticky or not: ____
Working environment temperature: ______ ℃
Working voltage:____V_____hz_____phase
