High Frequency Corrugated Sidewall Belt Conveyor Environmental Friendly

Name: High Frequency Corrugated Sidewall Belt Conveyor Environmental Friendly
Brand: JINRUI
Price: 1 USD

Quality High Frequency Corrugated Sidewall Belt Conveyor Environmental Friendly wholesale

Brand Name : JINRUI

Model Number : DJB

Certification : ISO/CE

Place of Origin : CHINA

MOQ : 1 SET

Price : negotiate

Payment Terms : L/C, T/T

Supply Ability : 10set per month

Delivery Time : 10-15 working days

Packaging Details : Seaworthy packing

Product Name : Corrugated Sidewall Belt Conveyor

Voltage : 380v

Struture : Z Shape

Frequency : 50HZ

Color : gray

Feature : High Frequency And Environmental Friendly

Contact Now

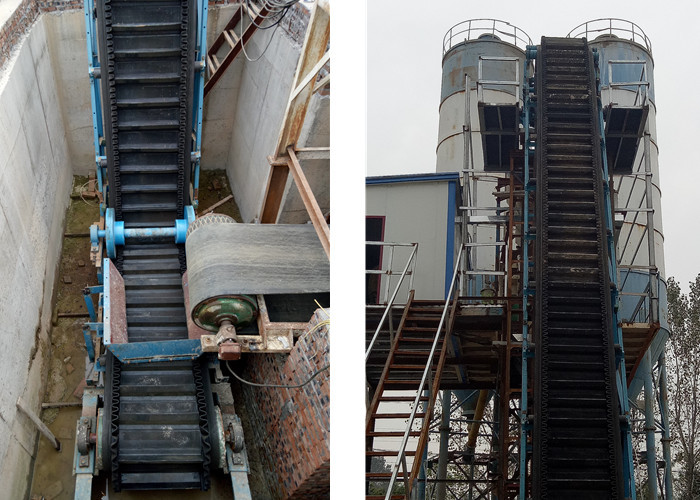

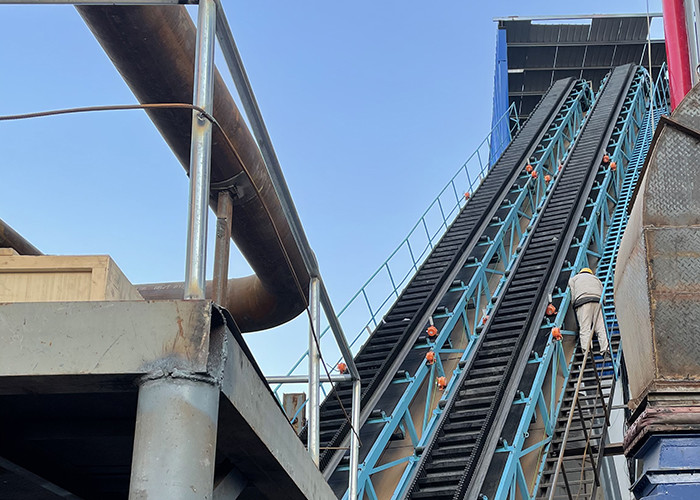

High Frequency Environmental Friendly Corrugated Sidewall Belt Conveyor

1. Corrugated Sidewall Belt Conveyor has the characteristics of simple structure, convenient maintenance, small space occupation and investment saving ,which is convenient for layout, so it is suitable for electric power, metallurgy, chemical industry, grain and other industries. widely used.

2. The conveying inclination can reach the range of 0°-90°, so it is especially suitable for vertical conveying.

3. Corrugated Sidewall Belt Conveyor is suitable for conveying various bulk materials with a specific gravity of 0.5-2.5t/m3 and a block size of about 100-250mm in the range of working environment humidity of -15℃--+40℃;

4. When conveying materials with special requirements, the corrugated sidewall conveyor belt of special materials should be used.

High Frequency Corrugated Sidewall Belt Conveyor Environmental Friendly

Tech data of Corrugated Sidewall Belt Conveyor

Belt Width(mm)		500		650		800
Side wall Height(mm)		80	120	120	160	120	160		200	240
Part angle throughput	30°	46	71	104	120	128	157		195	235
(m³/h)	45°	35	57	83	97	102	127		157	195
	60°	25	40	58	69	72	90		112	142
	90°	13	21	31	37	38	48		60	76
Dimensions	height of first rollerH2/h(mm)	1100-2000		1300-2000		1300-2000
	height of tail roller	600		600		600-800
	H2/h(mm)	600		600		600-800
	height of belt surface H2/h(mm)	760-800		800-850		800-1115
	width of ancho	870		1020		1220
	B2/h(mm)	870		1020		1220
Belt Width(mm)		1200				1400
Side wall Height(mm)		160	200	240	300	160	200	240	300	400
Part angle throughput	30°	275	331	419	466	319	395	500	564	794
(m³/h)	45°	222	267	347	384	258	318	414	465	680
	60°	158	190	253	178	184	226	302	337	524
	90°	85	102	136	149	98	121	162	180	281
Dimensions	height of first rollerH2/h(mm)	1400-2000		1600-2000
	height of belt surface H2/h(mm)	800-1000				800-1200
	height of belt surface H2/h(mm)	1050-1500				1050-1700
	width of ancho	1690				1890
	B2/h(mm)	1690				1890

Selection Conditions of Corrugated Sidewall Belt Conveyor

♦ Material to be processed: _____	♦ Max. granule size of the feeding material: _____mm
♦ Handling capacity (Ps. It means the total	♦ Percentage of Max. granule in material:_________%
material capacity feeding from the inlet): _____t/h	♦ Upstream equipment (Ps. It means what kind of
♦ Bulk Density: _____t/m3	equipment is used to feed the material): _____
♦ Material temperature: _____ºC;	♦ Downstream equipment (Ps. It means what kind of
♦ Water content:____%	equipment is used to discharge the material): _____
♦ Material is corrosive or not: ____ (Ps. Yes or No)	♦ Working power supply: _____V ______HZ
♦ Material is sticky or not: ____ (Ps. Yes or No)	♦ Please refer to the following picture and provide the
♦ Working environment is indoor or outdoor	relevant parameters:L1____m, L2___m, H___m, α____°
or indoor and outdoor: ______________	Working environment temperature: ______ ºC
