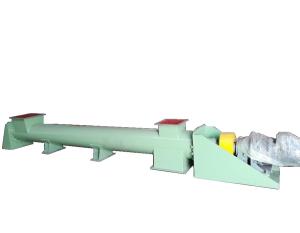

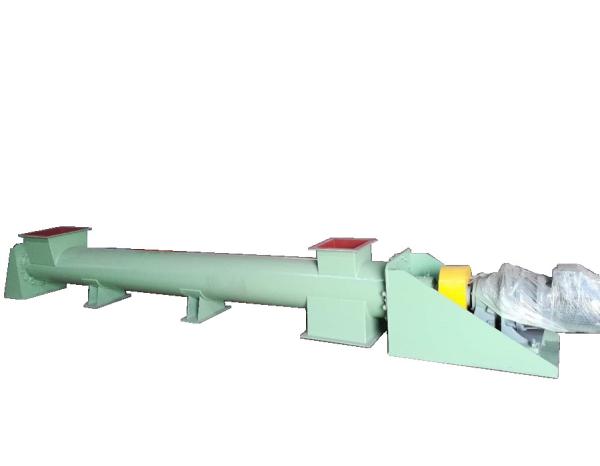

Coal Ash Adjustable Speed Tubular Screw Conveyor 30 Degree Inclined Angle
Working principle
Tubular Screw Conveyor is a kind of continuous conveying equipment without flexible traction. It uses the rotating screw to move the transported materials along the fixed casing to carry out the conveying work. The situation is like that the nut which can not be rotated is translational along the screw. The force that makes the material not rotate with the screw is the gravity of the material and the friction force on the shell.

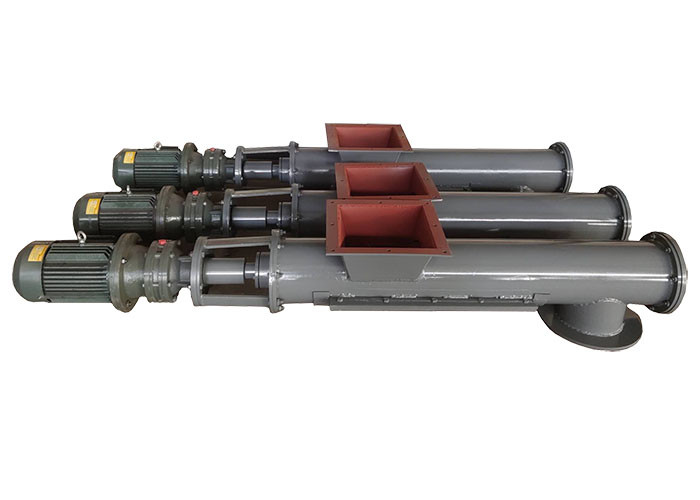

Tubular Screw Conveyor machine(also known as auger conveyor, screw conveyor, and spiral conveyor), is the main unit for mechanical transport operation of industry and agriculture, which uses motor to drive screw rotation and move material to achieve conveying purpose. Pipe screw conveyor is suitable for all industries such as building material, chemical industry,
power industry, metallurgy, coal industry and grain industry, for horizontal or tilted transportation for powdery, granular and small lump materials, such as coal, dust, residue, cement and grain which their temperature is less than 200℃.
Product Features
The advantages of Tubular Screw Conveyor are: simple structure, convenient maintenance; small cross-section size; can be in and out of materials at any position in the length direction; can use the cover of the closed shell to achieve better sealing effect.
Technical data
| Model number | LSY140 | LSY160 | LSY200 | LSY250 | LSY300 | LSY400 |
| Screw diameter(mm) | 140 | 163 | 187 | 238 | 290 | 365 |
| Rotating speed(r/min) | 300 | 300 | 260 | 200 | 175/300 | 175 |
| Outer diameter(mm) | 168 | 194 | 219 | 273 | 325 | 402 |
| Max length(m) | 11 | 12 | 13 | 16 | 18 | 18 |
| Incline degree(α°) | 0°~60° | 0°~60° | 0°~60° | 0°~60° | 0°~55° | 0°~55° |
| Conveying capacity(t/h) | 9月17日 | 30-20 | 50-32 | 70-53 | 82-60/120-85 | 140-110 |
| Motor | Model | L≤-7 | Y132S-4 | Y132S-4 | Y132M-4 | Y160L-6 | Y180M-4 | Y180M-4 |
| | Power(kw) | | 5.5 | 5.5 | 7.5 | 11 | 18.5 | 18.5 |
| | Model | L>7 | Y132S-4 | Y132M-4 | Y160M-4 | Y180L-6 | Y180L-4 | Y180L-4 |
| | Power(kw) | | 5.5 | 7.5 | 11 | 15 | 22 | 22 |
How to packing and delivery machine !!!
Usually packed with seaworthy wooden box packing and we can accepted customer sepical required .
About Us
Xinxiang jinrui machinery factory was established in 1999 and located in Xinxiang City, Henan Province. It is a design, research and development, production, manufacture and sales of high-tech enterprises that produce conveying equipment,vibrating screen equipment and feeding equipment.
In 2005, we have got the ISO9001 quality management system certification with strong technical force and 3000 square meters standardized workshops, 10 million yuan in fixed assets, current assets 8 million Yuan.
Our main production: Belt conveyor machine, sidewall belt conveyor, enclosed belt conveyor, inclined belt conveyor, troughed belt conveyor, U trough screw conveyor, tubular screw conveyor, reversible belt conveyor,impeller feeder, vibratory feeder, movable belt conveyor,circular vibrating sieve,small vibrating screen,heavy duty belt conveyor;
