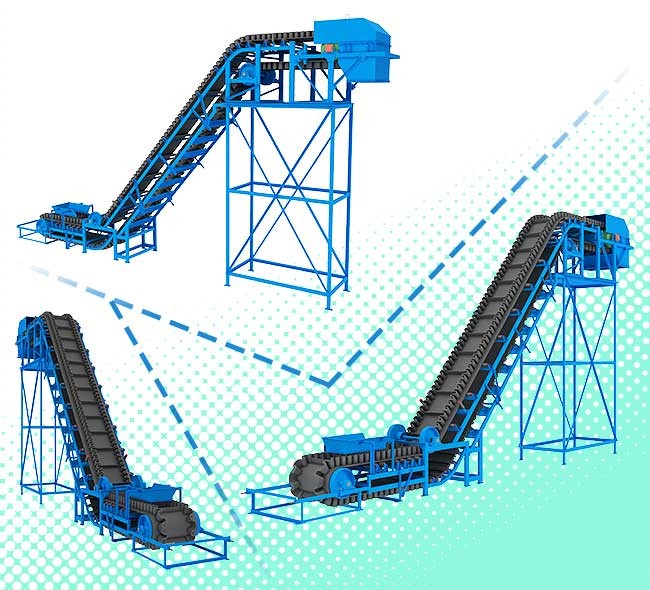

DJ Type Large Angle Vertical Sidewall Belt Conveyor For Coal Aggregate

  • 1
  • 2

Brand Name : JINRUI

Model Number : DJ500/650/800/1000/1200/1400mm

Certification : ISO/CE

Place of Origin : Henan

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 20 Sets Per Month

Delivery Time : 12-15 work days

Packaging Details : accroding to the machine size packed into different size woodcase

Type : Cleated Belt Conveyor

Material : Carbon steel

Application : Bulk material

Belt Speed : 0.8-2.5m/S

Feature : Simple Operation

Voltage : Requirement

Slope Angle : 0-90 Degrees

Transport Package : Polywood and Steel Frame

Contact Now

DJ Type Large Angle Vertical Sidewall Belt Conveyor For Coal Aggregate

Introduction
Sidewall belt conveyors are the best solution for horizontal, sloping or vertical product transport. It adopts high quality conveyor belt with corrugated sidewall and horizontal baffle. Sidewall belt conveyor is widely applied in coal and wood-chip fired power stations, underground mining (coal and ore),steel industry, ship loading and unloading, foundry plants, silo feeding industry, waste recycling, soil purification and water treatment, etc.
DJ Type Large Angle Vertical Sidewall Belt Conveyor For Coal Aggregate
Technical parameters for reference of Vertical Sidewall Belt Conveyor
Belt width
(mm)
Cleat height
(mm)
Handling capacity
(m3/h)
Belt speed
(m/s)
Inclination arrange
(°)
500
80
11-84
0.8-2.5
30-90
100
120
650
100
23-180
120
160
800
120
36-280
160
200
1000
160
45-500
200
240
1200
200
57-800
240
300

Advantages and Features of Vertical Sidewall Belt Conveyor
1.No spillage with steep angle conveying,long lifespan
2.Larger production grain sizes can be handled
3.Reduced energy consumption to save money for you
4.Able to conveyor material at any angles up to 90 degree to save space for you
5.Higher conveyance capacity
6.Extremely high stability is provided in the traverse direction, good longitudinal flexibility
7.Low maintenance requirements
8.Hot vulcanization provides 5 times greater adhesion between the belt and sidewall, eliminating the need for bolting the sidewall to the base belt.
9.Can be sealed and environmental friendly

Selection Conditions of Vertical Sidewall Belt Conveyor

♦Material to be processed: _____ ♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total ♦Percentage of Max. granule in material:_________%
material capacity feeding from the inlet): _____t/h ♦Upstream equipment (Ps. It means what kind of
♦Bulk Density: _____t/m3 equipment is used to feed the material): _____
♦Material temperature: _____ºC; ♦Downstream equipment (Ps. It means what kind of
♦Water content:____% equipment is used to discharge the material): _____
♦Material is corrosive or not: ____ (Ps. Yes or No) ♦Working power supply: _____V ______HZ
♦Material is sticky or not: ____ (Ps. Yes or No) ♦Please refer to the following picture and provide the
♦Working environment is indoor or outdoor relevant parameters:L1____m, L2___m, H___m, α____°
or indoor and outdoor: ______________
♦Working environment temperature: ______ ºC

Operation regulation and maintenance of Vertical Sidewall Belt Conveyor

  • Belt conveyor should be operated in according to design requirement.
  • Belt conveyors are not allowed to overload run.
  • Check wear condition of the belt, the damaged should be repaired.
  • Operators should circuit to inspect to close observe belt conveyor running. Especially,temperature rise and noise of main motor and the brake working whether they are normal; contact state of the brake and oil level, noise of gear unit and run off of belt should be noticed;temperature rise and noise of all bearings and state of all transition loads point should be noticed;
    notice to see whether the hopper are blocked, working state of pulley, idler, belt cleaner, take-ups and control equipment.
  • Operators should make good record if any abnormal. The belt conveyor should be stoppe on emergency.
  • Periodic overall: Minor overall should be once every monthes besides ordinary maintenance Overhaul should be once half past year or once every year.

DJ Type Large Angle Vertical Sidewall Belt Conveyor For Coal Aggregate
