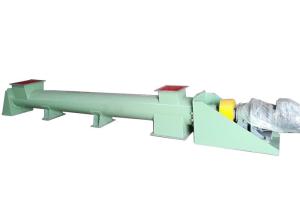

Machinery Carbon Steel LS250 U Trough Screw Conveyor ISO Certificate Quality
U Trough Screw Conveyor is widely used for conveying powder, granule or small block materials, usually it could be used with the suit sieving machine.
U Trough Screw Conveyor Feature
1.The motor reducer could be installed on the top or the bottom.
2.Conveyor has big transport capacity, long distance available.
3.Stable and controllable start, continuous and highly efficient operation.
4.The conveying could be the level or the inclined.
5.The blade could be entity spiral or belt spiral.
U Trough Screw Conveyor Characteristics
1. The structure is relatively simple and the cost is low;
2. Reliable work, simple maintenance and management;
3. The size is compact, the section size is small, the occupation area is small;
4. It can realize sealed transportation, which is beneficial to the transportation of materials that are easy to fly, hot and smelly, and can reduce the pollution to the environment.
5. Easy to load and uninstall. The horizontal screw conveyor can be loaded and unloaded at any point on its transmission line;
6. The unit energy consumption is large;
7. The material is easy to grind and wear in the process of transportation, and the wear of spiral blade and material groove is also more serious
U Trough Screw Conveyor Application
U Trough screw conveyor is widely used in building materials, metallurgy, chemical industry, machinery, light industry, grain and food industry. U-type screw conveyor is suitable for conveying powder Shaped, granular, small bulk materials, such as cement, fly ash, grain, chemical fertilizer, mineral powder, sand, soda and so on. U-shaped screw conveyor is not suitable for transporting materials that are easy to deteriorate, sticky and easy to caking. The working environment temperature of the conveyor is usually-20 °40 °, the temperature of the conveying material is generally 20 °80 °℃, the U-shaped screw conveyor is suitable for horizontal and small inclination arrangement, and the inclination angle is not more than 15 degrees. If the tilt angle is too large, the tubular screw conveyor should be selected.
U Trough Screw Conveyor Technical parameter
| Model | Diameter mm | Pitch mm | Speed r/min | Standard Capacity(m3/h) | Speed r/min | Standard Capacity(m3/h) | Speed r/min | Standard Capacity(m3/h) |
| φ0.45 | φ0.33 | φ0.15 | φ0.45 | φ0.33 | φ0.15 | φ0.45 | φ0.33 | φ0.15 |
| LS200 | 200 | 200 | 100 | 16.9 | 12.4 | 5.6 | 80 | 13.5 | 9.9 | 4.5 | 63 | 10.7 | 7.8 | 3.6 |
| LS315 | 315 | 315 | 80 | 52.9 | 38.8 | 17.6 | 63 | 41.6 | 30.5 | 13.9 | 50 | 33.1 | 24.2 | 11 |
| LS400 | 400 | 355 | 71 | 85.3 | 62.5 | 28.4 | 56 | 67.3 | 49.3 | 22.4 | 45 | 54.1 | 39.6 | 18 |
| LS500 | 500 | 400 | 63 | 133.2 | 97.7 | 44.4 | 50 | 105.8 | 77.6 | 35.3 | 40 | 84.6 | 62.0 | 28.2 |
| LS630 | 630 | 450 | 50 | 188.9 | 138.5 | 63.0 | 40 | 151.1 | 110.8 | 50.4 | 32 | 120.9 | 88.6 | 40.3 |
Our serivice
Pre-Sales Service
Customer consultant 24 hour online
Engineer team provide design drawing
Skilled staff responsible for production
Take pictures for all Production process | After-Sales Service
Provide installation instruction
Solve any problems involved
Tell the machinery maintain guidance
Regular monthly sales tracking |
U Trough Screw Conveyor Selection Conditions
| Material to be processed: _____ | Working environment is indoor or outdoor:________ |
| Handling capacity: ________per hour | Working environment temperature: _______ ℃ |
| Bulk Density: _____t/m3 | Installation form is horizontal or inclined : ________ |
| Conveying distance: ________ | If it is inclined,what is the inclined degree_____° |
| Material size:____mm | Water content:____% |
| Material temperature: _______ ℃ | Working power supply: _____V ______HZ ______PH |
