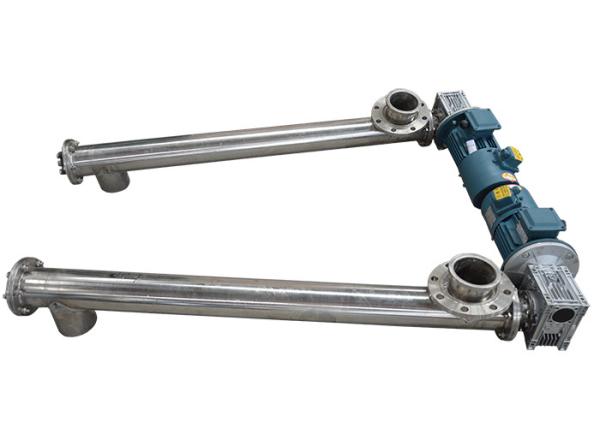

60 Degree 53TPH Tublar Screw Conveyor With Stainless Steel

  • 1
  • 2

Brand Name : JINRUI

Model Number : LSY

Certification : ISO/CE

Place of Origin : HENAN,CHINA

MOQ : 1 set

Price : USD 680-USD 9800/SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5SET PER 10 DAYS

Delivery Time : 10-12 WORK DAYS

Packaging Details : seaworthy wooden box packing or packed by steel structure

Material : Stainless Steel

Application : Gravel

Warranty : 13 month

Voltage : 380/410/460/480v

Resistant : Abrasion Resistant

Angle : Less than 60 degree

Contact Now

60 Degree 53TPH Tublar Screw Conveyor With Stainless Steel

Working principle Of Tublar Screw Conveyor

Tublar Screw Conveyor driving device starts, the helical blade in the tube push the material and make the material do axial movement. The material can be discharged at the proper outlet at the bottom of the case. The head and stern bearing have been moved outside from tube. By adopting sliding bearing, dustproof sealed device and slide block to make it easy to install and maintain.

Product Features Of Tublar Screw Conveyor

1. The structure is relatively simple and the cost is low.
2. Reliable work, easy maintenance and management.
3. Compact size, small cross-section size, small footprint. It is easy to get in and out of hatches and carriages during unloading operations at the port.
4. Sealed delivery can be achieved, which is conducive to the delivery of materials that are easy to fly, hot and odor, can reduce environmental pollution, and improve the working conditions of port workers.
5. Easy to load and unload. The horizontal screw conveyor can be loaded and unloaded at any point on its conveying line; the vertical screw conveyor can be equipped with a relative screw type picking device and can have excellent reclaiming performance; the screw shaft directly contacting the material pile has automatic retrieving. The capacity can be used as a reclaimer for other types of unloading machinery at ports.

Technical data Tublar Screw Conveyor

Model number LSY140 LSY160 LSY200 LSY250 LSY300 LSY400
Screw diameter(mm) 140 163 187 238 290 365
Rotating speed(r/min) 300 300 260 200 175/300 175
Outer diameter(mm) 168 194 219 273 325 402
Max length(m) 11 12 13 16 18 18
Incline degree(α°) 0°~60° 0°~60° 0°~60° 0°~60° 0°~55° 0°~55°
Conveying capacity(t/h) 20-0 30-20 50-32 70-53 82-60/120-85 140-110
Motor Model L≤-7 Y132S-4 Y132S-4 Y132M-4 Y160L-6 Y180M-4 Y180M-4
Power(kw) 5.5 5.5 7.5 11 18.5 18.5
Model L>7 Y132S-4 Y132M-4 Y160M-4 Y180L-6 Y180L-4 Y180L-4
Power(kw) 5.5 7.5 11 15 22 22

Selection Conditions of Tublar Screw Conveyor

♦Material to be processed: _____
♦Handling capacity --------------
material capacity feeding from the inlet): _____t/h
♦Bulk Density: _____t/m3
♦Conveying distance --------------------------
♦Material size:____mm
♦Material temperature: _______ ℃
♦Water content:____%
♦Material is corrosive or not: ____ (Ps. Yes or No)

How to Select Correct Model Tublar Screw Conveyor :
1. Are you a factory or a trading company
We are a factory,and you are warmlyh welcomed to pay an on-site visit!
2. What's the accepted payment term?
T/T L/C Western union,cash and so on.
3. Can you offer the customized solution to my case?
We have R&D team who will handle your case and come up with an ideal solution
4. How long is your lead time for the machines
Normally 20 workdays after the deposit is reached.Nonstandard equipments could be longer depends on certain case
5. Are you engineers available for overseas installation and training matters?
Yes,and all the relative costs should be covered by you
How to packing and delivery machine !!!
Usually packed with seaworthy wooden box packing and we can accepted customer sepical required .
60 Degree 53TPH Tublar Screw Conveyor With Stainless Steel60 Degree 53TPH Tublar Screw Conveyor With Stainless Steel
