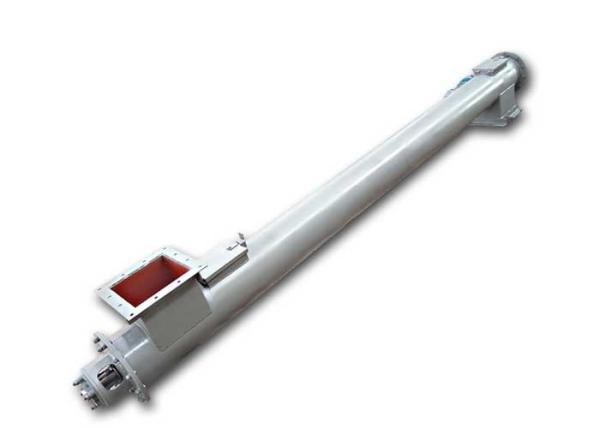

Motor Gearbox Device 100T/H Tubular Screw Conveyor

Name: Motor Gearbox Device 100TH Tubular Screw Conveyor
Brand: JINRUI
Price: 680 USD

Quality Motor Gearbox Device 100T/H Tubular Screw Conveyor wholesale

Brand Name : JINRUI

Model Number : LSY

Certification : ISO/CE

Place of Origin : HENAN,CHINA

MOQ : 1 set

Price : USD 680-USD 9800/SET

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5SET PER 10 DAYS

Delivery Time : 10-12 WORK DAYS

Packaging Details : seaworthy wooden box packing or packed by steel structure

Material : Carbon Steel

Application : Gravel

Warranty : 13 month

Voltage : 380/410/460/480v

Resistant : Abrasion Resistant

Angle : Less than 60 degree

Contact Now

100T/H Motor Gearbox Device LSY Tubular Screw Conveyor

Tubular Screw Conveyor Main features: simple and compact structure, small cross-sectional area, good sealing, convenient operation, easy maintenance, easy closed transportation, small cross-sectional area, light weight, good sealing performance, high conveying efficiency, flexible process layout, convenient installation, disassembly and movement, and safe operation. Tubular Screw Conveyor is suitable for conveying various powder, granular and small bulk materials, such as clay powder, coal powder, cement, sand, grain, small coal, pebble and cast iron cutting. Tubular Screw Conveyor is not suitable for conveying viscous, caking and deteriorating materials.

Technical data Tubular Screw Conveyor

Model number			LSY140	LSY160	LSY200	LSY250	LSY300	LSY400
Screw diameter(mm)			140	163	187	238	290	365
Rotating speed(r/min)			300	300	260	200	175/300	175
Outer diameter(mm)			168	194	219	273	325	402
Max length(m)			11	12	13	16	18	18
Incline degree(α°)			0°~60°	0°~60°	0°~60°	0°~60°	0°~55°	0°~55°
Conveying capacity(t/h)			20-0	30-20	50-32	70-53	82-60/120-85	140-110
Motor	Model	L≤-7	Y132S-4	Y132S-4	Y132M-4	Y160L-6	Y180M-4	Y180M-4
	Power(kw)	L≤-7	5.5	5.5	7.5	11	18.5	18.5
	Model	L>7	Y132S-4	Y132M-4	Y160M-4	Y180L-6	Y180L-4	Y180L-4
	Power(kw)	L>7	5.5	7.5	11	15	22	22

Selection Conditions of tubular auger conveyor

♦Material to be processed: _____

♦Handling capacity --------------

material capacity feeding from the inlet): _____t/h

♦Bulk Density: _____t/m3

♦Conveying distance --------------------------

♦Material size:____mm

♦Material temperature: _______ ℃

♦Water content:____%

♦Material is corrosive or not: ____ (Ps. Yes or No)

How to Select Correct Model Tubular Auger Conveyor :
1. Are you a factory or a trading company
We are a factory,and you are warmlyh welcomed to pay an on-site visit!
2. What's the accepted payment term?
T/T L/C Western union,cash and so on.
3. Can you offer the customized solution to my case?
We have R&D team who will handle your case and come up with an ideal solution
4. How long is your lead time for the machines
Normally 20 workdays after the deposit is reached.Nonstandard equipments could be longer depends on certain case
5. Are you engineers available for overseas installation and training matters?
Yes,and all the relative costs should be covered by you
How to packing and delivery machine !!!
Usually packed with seaworthy wooden box packing and we can accepted customer sepical required .
