Adjustable Lifting Height Guide Chute Belt Conveyor Machine
Application
Belt conveyors are the logistics and transportation machinery widely needed in many industrial sectors. Due to the variety and wide specifications of belt conveyors, it can be applied to the logistics and transportation requirements of chemical, light industry, food, food, building materials, post and telecommunications, and many other departments; it can also meet various operations such as docks, storage yards, warehouses, and workshops. Line transportation requirements. Belt conveyors use belts, steel belts, steel fiber belts, plastic belts, and chemical fiber belts as conveyors to transport materials and haul workpieces. Its characteristic is that the conveyor belt that carries the material is also a traction member that transmits power, which is significantly different from other conveyor machinery. It is the most widely used type in continuous conveyors, and it is mainly belt.
Feature
The inclined belt conveyor is mainly composed of several major components, such as a driving device, a transmission roller, a redirecting roller, a conveyor belt, a roller component, a tensioning device, a supporting member, and a safety protection device. The features are below:
1. Easy loading and unloading. The belt conveyor can be loaded and unloaded at any point according to the needs of the process.
2. Strong adaptability to the line. The conveying line can be horizontal or inclined, or it can be bent horizontally or vertically, so it is less restricted by terrain conditions.
3. High reliability. Due to the simple structure and the light weight of the moving parts, as long as the conveyor belt is not torn, the service life can be as long as ten years, and the metal structural parts will not be damaged for decades if they are rust-proof.
4. Less maintenance costs. The moving parts of the belt conveyor are only rollers and idlers, and the conveyor belt is very wear-resistant. Compared to other conveying machines, there are far fewer wear parts.
In addition, the belt conveyor also features low operating costs, low capital investment, low energy consumption, and high efficiency
-
Advantage
1. The unloading point can be moved to realize long-distance continuous multi-point unloading.
2. Two way operation realizes two-way unloading.
3. The height of the whole machine is reduced, which is suitable for the occasion where the unloading truck cannot be used.
4. The occupied space is small, which reduces the cost of civil engineering
Technical Parameters
| Belt Width | Section Form | Speed | Max Capacity |
| 800mm | Though | 1.0m/s | 278t/h |
| 1.25m/s | 348t/h |
| 1.6m/s | 445t/h |
| 2.0m/s | 546t/h |
| Flat | 0.8m/s | 118t/h |
| 1.0m/s | 147t/h |
| 1.25m/s | 184t/h |
| 1.6m/s | 236t/h |
| 2.0m/s | 289t/h |
Product Tags:
|
|

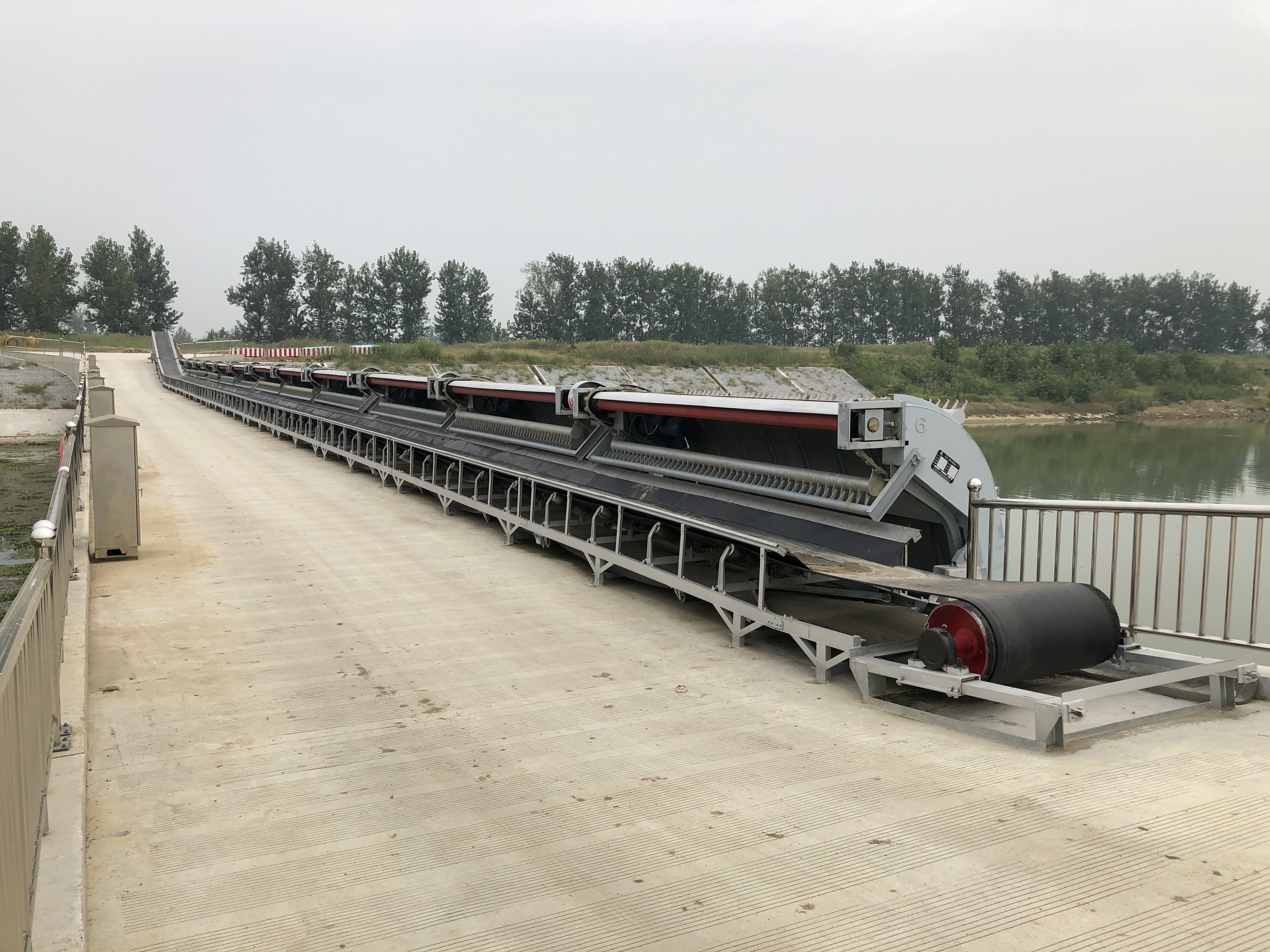

Adjustable Lifting Height Guide Chute Belt Conveyor Machine Images
|
